1. Application
→Used in compression test for cement, concrete, mortar, construction members, rocks, tubular piles, sintered hollow bricks, hollow blocks, acid-proof bricks, sintering tiles and other building material and building products.
→Used in compression force, compression strength, elastic modulus test for common concrete and high strength concrete sample.
→Applicable in cubic concrete sample with size 100mm, 150mm, 200mm , cyclinder concrete sample with size Ф150x300mm, Ф100x200mm, Ф200x400mm and prism sample with size 150x150x300mm, 100x100x300mm, 200x200x400mm.
Test Standards
→GB/T50081Standard for test method of mechanical properties on ordinary concrete；
→GB/T50107 Standard for evaluation of concrete compressive strength；
→GB 50164-2011 Quality Control Standard of Concrete
→GB/T18736-2017 Mineral admixtures for high strength and high performance concrete
→TB/T3275-2011 Concrete for railway construction
→TB 10424 Acceptance standards for construction quality of railway concrete works
→SL352 Test code for hydraulic concrete
→JGJ/T385-2015 High performance concrete evaluation standard
→JGJ/T294-2013 Technical specification for strength testing of high strength concrete
→GB/T50146-2014 Technical specification for fly ash concrete application
→GB/T8239-2014 Ordinary Concrete Small Block
→GB/T25779 Load-bearing concrete perforated brick
→GB/T28635-2012Concrete paving brick
→GB/T11968 Autoclaved aerated concrete block
→GB/T13544-2011 Sintered perforated brick
→GB/T2542-2012 Test methods for wall brick
→GB/T5101 Sintered ordinary brick
→GB/T8488 Acid-proof brick
→GB/T4111-2013 Test methods for the concrete block and brick
→GB 13545-2014 Fired hollow bricks and blocks
→GB/T15229-2011 Lightweight aggregate concrete small hollow block
2. Technical Parameters

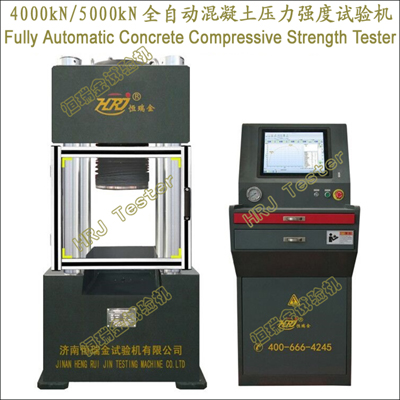

→Load capacity: 4000kN/5000kN
→Test space: 0-425mm
→Compression stroke: 0-200mm
→Round upper pressure platen: Φ300mm
→Square lower pressure platen: 340x340mm
→Compression loading speed: 0.01-8.0MPa/s
