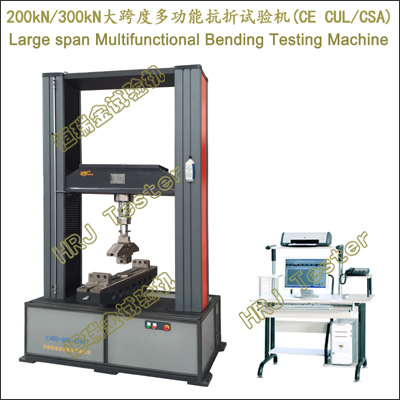

→200kN/300kN Large span Multifunctional Bending Testing Machine(CE CUL/CSA)
→200kN/300kN Multifunctional Bending Testing Machine(CE CUL/CSA)
→200kN/300kN Large span Bending Testing Machine(CE CUL/CSA)
→WDW-Z200 200kN Large span multifunctional flexure testing machine (CE CUL/CSA)
→WDW-Z300 300kN Large span multifunctional flexure testing machine (CE CUL/CSA)
1. Introduction
→Used in flexure and bending strength test for asbestos cement corrugated sheet, asbestos cement plate, strawboard, plasterboard, light weight thermal insulating material plate, composite plate, wood-based panel , etc.
→Used in flexure and bending strength test for concrete paving bricks, concrete paving plate, wall bricks, concrete solid blocks, concrete hollow blocks, etc.
→Used in flexure and bending strength test for ceramics, polished tile, porcelain bricks, fine ceramics, fiber reinforced ceramics, granule reinforced ceramic composites, loadbearing concrete perforated bricks, permeable paving bricks, sand-based water permeable brick, etc.
→Used in flexure and bending strength test for natural granite, natural marble, natural limestone, natural sandstone and other nature facing building stone, concrete curb, highway engineering rocks, etc.
Test Standards
→ISO 12344:2010；ISO 3051；ISO 13006:2012；ISO 10545-4:2014；
→EN 1338:2003；EN 1339:2003；DIN 53291；DIN 53292；DIN 53293；DIN 53294；
→ASTM C1658/C1658M-2013；ASTM C503；ASTM C55；ASTM C273；ASTM C880；ASTM C902；ASTM C936
→GB/T9966.2 Test methods for natural facing stones-Part2:Dry and wet test methods for flexural strength；
→GB/T19766-2016 Specification for natural marble for building slab
→GB/T3810.4-2016 Test methods of ceramic tiles-Part4: Determination of modulus of rupture and breaking strength
→GB/T4100-2015 Ceramic tiles
→GB/T6569 Fine ceramics(advanced ceramics，advanced technical ceramics)-Test method for flexural strength of monolithic ceramics at room temperature
→GB/T33001-2016 Thermal insulating products for building applications-Determination of bending behaviour；
→GB/T4111-2013 Test methods for the concrete block and brick
→GB/T28635-2012 Precast concrete paving units
→GB/T32982-2016 Fired decorative brick
→GB/T25779-2010 Loadbearing concrete perforated bricks
→GB/T25993-2010 Permeable paving bricks & permeable paving flags
→GB/T2542-2012 Test methods for wall bricks
→GB/T26541-2011 Autoclaved fly ash perforated brick
→GB/T50081 Standard for test method of mechanical properties on ordinary concrete
→GB/T18600 Natural slate
→GB/T7019-2014 Test methods for fiber cement products；
→GB/T17669.3 Gypsum plasters-Determination of mechanical properties；
→JG/T328-2011 Stone face honeycomb composite panel for building decoration；
→JC/T239-2014 Autoclaved fly ash brick；
→JC/T829-2010 Gypsum panel with cavities；
→JC/T546.1 Fiber reinforced calcium silicate plate part 1: no asbestos calcium silicate plate
→JC/T546.2 Fiber reinforced calcium silicate plate part 2: the warm asbestos calcium silicate plate
→JC/T899-2016 Concrete curbs；
→JG/T376-2012 Sand-based water permeable brick；
→JTG E41 Test Methods of Rock for Highway Engineering
2. Specifications
→load capacity: 200kN/300kN
→load accuracy: ≤±1.0%；≤±0.5%
→load resolution: 1/±300000F.S
→test span: ≥1100mm
→moving stroke of crosshead: 0～1200mm
→loading rate: 0.001～600mm/min（customized:9m/min＆150mm/s＆360in/min high speed testing machine）
→accuracy of loading speed：≤±0.5%；
→deformation resolution of displacement: 0.01mm；
→3-point/4-point flexure fixture and accessory
→working voltage: 220V±10% 50Hz(should firmly grounded)
→HRJ-Test test software
→optional standard cabinet (PC, measurement and control system)
→rotatory computer control system(CCS)；
→optional Touch Screen System(TSS)；
