Application:

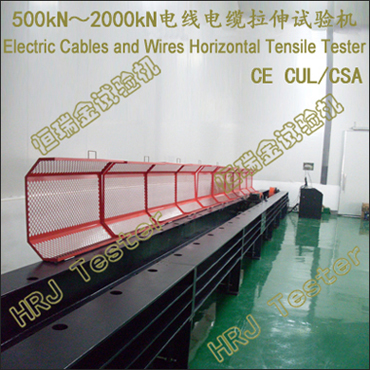

→Used in tensile property test for optical fiber cables, cables, overhead stranded conductor, composite stranded conductor.
→Used in creep test for overhead electrical conductors for 1000 hours.
→To determine tensile force RTS, max. allowable tensile force MAT, 20% RTS, 40% RTS, 60% RTS, 2%-100% RTS, tensile force and stress-strain property of optical fiber composite overhead ground wire (OPGW), creep property.
→Used for OPGW optical cables, OPPC cables, ADSS cables, OPLC cables, aluminum stranded conductor, aluminum alloy stranded conductor, anti-corrosive ACSR, high strength steel stranded wire, Al-clad steel stranded wire, Concentric layer stranded wire, etc.
→It is widely used in shipbuilding, petrochemical industry, aerospace, machinery manufacturing, wire and cables, etc.
→IEC61395 Overhead electrical conductors-Creep test procedures for stranded conductors.
IEC61089 Round wire concentric lay overhead electrical stranded conductors
→GB/T3048 Wire and cable performance test methods
→GB/T3428 Overhead conductor with galvanized steel wire
→GB/T17937 Electrician with aluminum clad steel wire
→GB/T7424.2 Fiber optic cable general specification Part 2: basic test method for fiber optic cable
→Max. Load: 400kN
→Measuring range of load: 1%-100%F.S
→Loading speed: 0.005-200mm/min
→Effective test width: 400mm
→Tensile test space: 0-15m
→Adjusting mode of test space: Manual adjustment by bolt insertion, with an interval of 500mm
