Application:

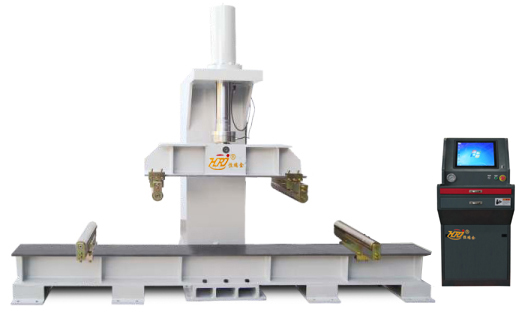

→It is designed to support specific requirements of clients especially big sized concrete beam specimens.Different sizes of flexural testing machines can be produced to meet customers' specific needs.
→The Machines consist of a rigid steel frame and hydraulic power pack and provide the stability needed for accurate and repeatable test results over the years of operation.
→Tests can be performed on a computer with using free Software. The advantages of performing tests on computer with using our software, such as reporting, graphical output, etc.
→Flexural testing machines allow inexperienced to perform the test. Once the machine is switched on and specimen is placed, then the only required operations are:
→Setting test parameters, including pace rate only required when the specimen type is changed.
→Pressing the START button on the control unit or Start button on computer.
→The machine automatically starts the rapid approach; switches the test speed after 1% of the load capacity of the machine and stops once the specimen failure.
→Automatically saves the test parameters and test results.
→Max. Load: 600kN
→Piston stroke: 600mm
→Span between upper rollers: 100-1000mm
→Max. span between lower rollers: 3000mm
→Max. Vertical clearance between upper and lower rollers: 560mm
→Model of loading frame: C type structure
