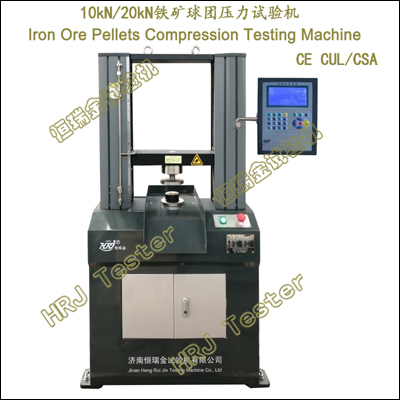

1. Introduction
→Used in compression strength test for iron ore pelletizing,oxidized pellets,metal pellets,alkaline pellets, high temperature consolidation pellets, low temperature consolidation pellets,etc.
Features
→with precise gapless ball screw, high stiffness, high stability loading frame.
→with mini computer for data acquisition of load, loading rate, deformation and after test, test data can be calculated, processed and test results can be printed by miniprinter.
→with reserved interface for data transmission.
→with circuit board of photoelectric isolation design, powerful anti-interference capacity.
→After test, the upper loading nose automatically returns to original position.
Test Standards
→GB/T14201 Test method of compression strength for ore pellets →GB/T27692 Acidity iron pellet for blast furnace
→GB10122 Iron ores (sinter and pellets) - Sampling and sample preparation for physical testing
→ISO4700 Determination of crushing strength of iron ore pellets
→ISO3081 Iron ores - increment sampling - Manual method
→ISO3083 Preparation of samples of iron ores by manual means
2. Technical Specification
|
KYS-10/20
|
||
|
No.
|
Inspection items
|
Technical specifications
|
|
1
|
Max. load
|
10kN/20kN
|
|
2
|
Load grade
|
Class 1
|
|
3
|
measuring range of load
|
1%-100%
|
|
4
|
Relative error of indicating value
|
±1.0%
|
|
5
|
Load resolution
|
1/±200000F.S
|
|
6
|
Measuring range of deformation
|
0.2%～100%F.S
|
|
7
|
Speed range of load
|
0.005%-5%FS/S
|
|
8
|
Speed accuracy of load
|
If speed <0.05%FS, accuracy:±1% of the set value
If speed ≥0.05%FS, accuracy: within ±0.5% of the set value
|
|
9
|
Speed range of deformation
|
0.005～5%FS/s
|
|
10
|
Speed accracy of deformation
|
If speed＜0.05%FS/s, accuracy: ±1% of the set value
If speed ≥0.05%FS/s, accuracy: within ±0.5%of the set value
|
|
11
|
Deformation resolution
|
0.001mm
|
|
12
|
Displacement speed
|
0.2-600mm/min
|
|
13
|
Size of upper loading nose
|
Ф40mm
|
|
14
|
Size of lower platen
|
Ball-socket location / Crushed aggregates collecter
|
|
15
|
Speed accuracy of displacement
|
Within ±0.2%of the set value
|
|
16
|
Loading mode
|
Loading by mini computer
|
|
17
|
Span between columns
|
410mm
|
|
18
|
Stroke of crosshead
|
400mm
|
|
19
|
Working voltage
|
Loading machine: 220V±10% 50Hz
|
|
20
|
Motor power
|
400W
|
|
21
|
Dimension of loading frame (L*W*H)
|
860*560*1570mm
|
