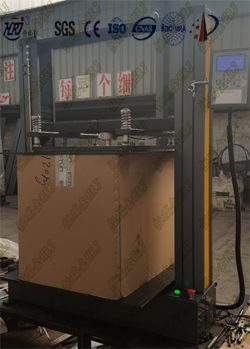

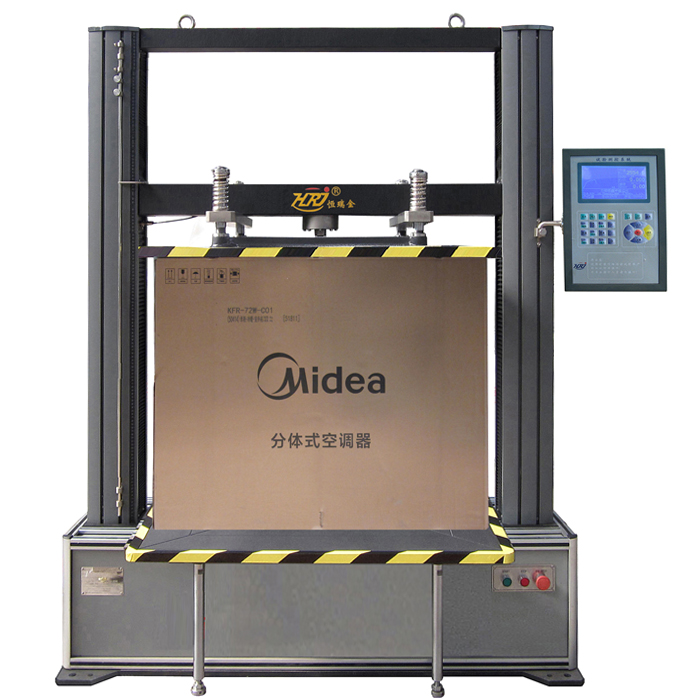

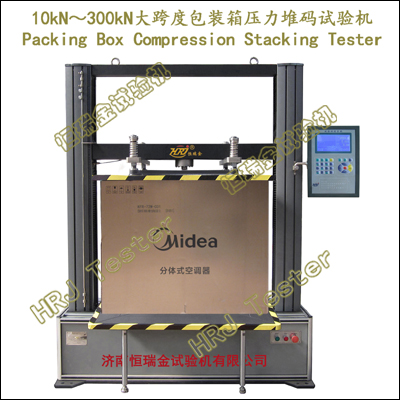

Packing Cartons Compression & Stacking Testing Machine
Packing Box Compression & Stacking Testing Machine
Packing Case Compression & Stacking Testing Machine
Transport Packages Compression & Stacking Testing Machine
1. Introduction
→Used in compression test and static loading stacking test for transport packages to determine the compression strength of transport packages under pressure and the protection capacity for contents of the packing case.

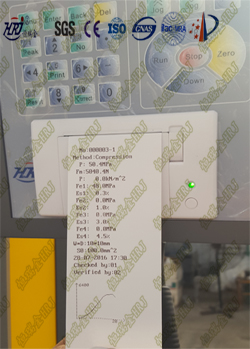

→With precise automatic control and data acquisition system to realize full digitalization of data collection and control process and display real-time load,deformation,max.crush force,max.test force.
→Applicable in wooden dase, wooded framed case,wooden crate,crate,bamboo package,bamboo crate,plywood case,3-Ply plywood case,carton,corrugated carton,honeycomb paperboard packing box,fastener packing,engineering plastic container,common plastic packages,ABS plastic packages,detatchable packages,composite package case,alluminium alloy packages,fumigation-free package,wooden box,iron box,plastic transparency box,bamboo basket,wicker basket.
→If equipped with tensile grips, it can be used for tensile test for transportation packages.
Test Standards
→GB/T4857.3-2008
→GB/T4857.4-2008 Packaging - Basic tests for transport packages - Part 4：Compression and Stacking tests using a compression tester
→GB/T4122.4 Packaging Terms-Part 4:Materials and Container
→GB/T19788 Inspection code for honeycomb fibreboard boxes
→ISO 12048-2001 Packaging-complete,filled transport packages - compression and stacking tests using a compression tester
→ISO 2234-2000 Packaging; Complete, filled transport packages and unit loads; Stacking tests using static load；
→ASTM D642-2000(2010)Standard Test Method for Determining Compressive Resistance of Shipping Containers, Components, and Unit Loads
→ASTM D4169-2009 Standard Practice for Performance Testing of Shipping Containers and Systems
→TAPPI T804 Compression test for fiberboard shipping containers
→JIS Z0212 Packing goods and containers. Compression test method
2. Technical Specifications
|
WBZ-S10/20/30/50/100/200/300 |
||
|
1 |
Max. Load capacity |
10/20/30/50/100/200/300 |
|
2 |
Load accuracy |
±0.5, ±1.0 |
|
3 |
Measuring range of load |
1%-100% |
|
4 |
Load resolution |
1/±200000F.S |
|
5 |
Loading speed |
0.2-500mm/min |
|
6 |
Displacement resolution |
0.01mm |
|
7 |
Vertical test space |
700mm,1000mm,1200mm,1500mm |
|
8 |
Size of pressure platen (L*W) |
1000*2000, can be customized |
|
9 |
Span between columns |
1100, can be customized |
|
10 |
Loading mode |
Automatic control by mini computer |
|
11 |
Working voltage |
220VAC, 50Hz |
