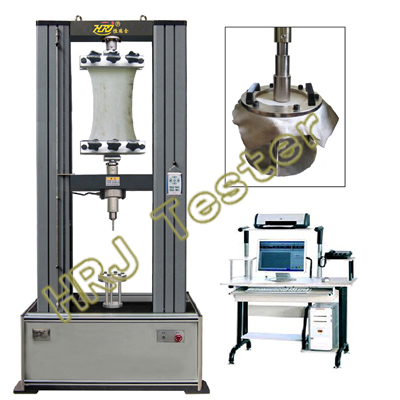

Introduction
→Geosynthetics includ: geotextiles, geogrids, plastic geogrids, steel-plastic compound geogrids, fiberglass plastic geogrids, Polyester warp knitted geogrid, geomembrane.
→It is applicable to geosythetics for wide-width tensile test, grab test, trapezoid tear test, CBR puncture test, ball bursting test.
Standards:
→JT/T925.1 Geosynthetics in highway engineerings-Geogrid-Part 1: Steel-plastic compound geogrid
→JT/T925.3 Geosynthetics in highway engineerings-Geogrid-Part 3: Fiber plastic geogrid
→ISO10319 Geosynthetics-Wide-width tensile test
→ASTM D4595 Standard Test Method for Tensile Properties of Geotextiles by the Wide-Width Strip Method
→ASTM D4632 Standard Test Method for Grab Breaking Load and Elongation of Geotextiles
→ASTM D6241 Standard Test Method for Static Puncture Strength of Geotextiles and Geotextile-Related Products Using a 50-mm Probe
→ASTM D4833 Standard Test Method for Index Puncture Resistance of Geomembranes and Related Products
→ASTM D4533 Standard Test Method for Trapezoid Tearing Strength of Geotextiles
Specifications
→max. load: 50kN
→measuring range of load: 1%-100%
→speed range: 0.002-500mm/min
→crosshead stroke (excluding grips): 1000mm
→span: 400mm
→power supply: 1 phase, 220V, 50Hz
