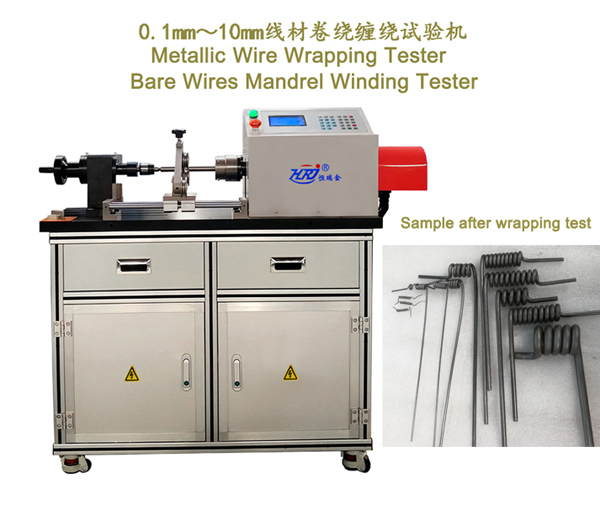

Application:
→It is designed and produced as ISO7802:2013 : Metallic Material- Wire-Wrapping Test.
→Used in the method for determining the ability of wire of diameter or thickness 1.0 to 10.0 mm inclusive to undergo plastic deformation during wrapping.
→The test consists of winding a wire to a specified number of turns around a mandrel of the diameter specified in the relevant standard to form a closely wrapped helix. It may also include a specified sequence of windings and unwindings, or even rewindings.
→It provides reliable measuring method for wire manufacturers and users.
→Comply with EN10244-1, EN10244-2, EN10218-1, ISO7802.
→Wire diameter: 0.1-10.0mm
→Wrapping test: 20r/min
→Counting resolution: 360°/r
→Mandrels: made as required
