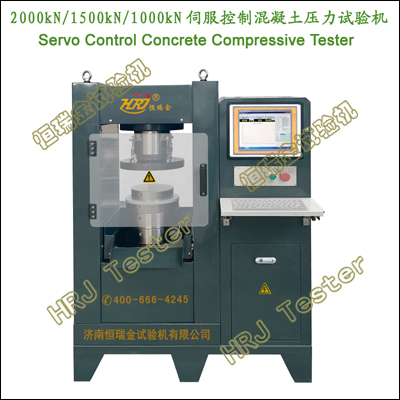

1. Introduction
→Used in compression strength test for bricks, cement and concrete for max. load and compression strength.
→Applicable in cube concrete specimen with size 100mm, 150mm, 200mm, cylindrical specimen with size Ø150*300mm, Ø100*200mm and prism specimen with 150*150*300mm, 100*100*300mm.
→With compact structure, adopting high precise sensor to measure load, with stable indicating value.
→Digital display test force and loading speed, with functions of peak holding, test results print.
→Suitable machine for labs, contractors and even mobile labs to test concrete cylinders.
2. Technical Specifications
→max. test force: 1000kN/1500kN/2000kN
→measuring range of test force: 2%-100%FS
→error of indicating value: ≤±1.0%
→max. compression space: 215/350mm, can be customized as required
→size of spherical upper platen: Ф170mm/Ф300mm
→size of square lower platen: 400(L)*350(W) mm
→span of columns: 430(L)*430(W) mm
→max. piston stroke: 50mm
→loading rate: 600N/s-60kN/s
→power supply: 220VAC±10%, 50Hz
→motor power: 1.5kW/2.2kW
→dimension of loading frame (L*W*H): 1140*610*1700mm
