Introduction

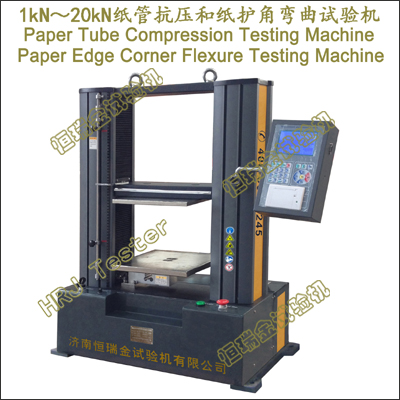

Used in compression strength and edge corner flexure test for all types of industry paper tubes, chemical fiber paper tubes, honeycomb paperboard, paper cores, textile bobbin, edge board, packet carton and other types of small containers.
Test Standards
→ISO186:2002,Paper and board-Sampling to determine average quality，MOD
Technical specifications
→ max. test force: 5kN/10kN/20kN
→ measuring range of load: 1%-100% F.S
→load resolution: 1/±200000FS
→displacement speed: 0.2-600mm/min
→max. stroke of cross head: 400mm/500mm/600mm
→ span between columns: 410mm
→size of pressure platen: 300*300mm
→power: single phase 220V±10%, 400W
Edge Corner Flexural Test Fixture
