Application

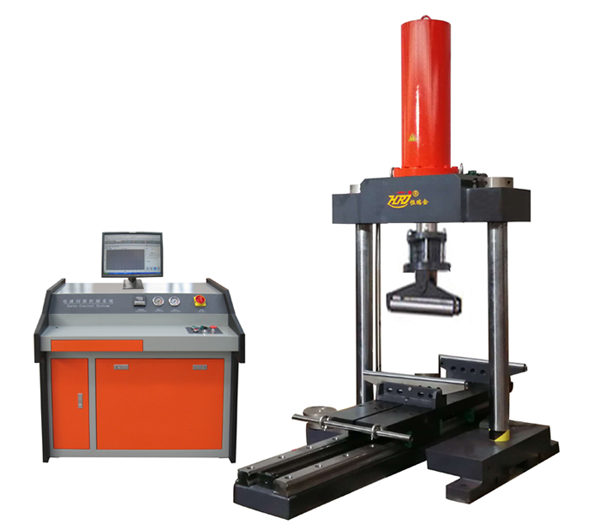

→It can be used for flexural strength and flexural force test of concrete test beam with size 500×500×2000mm.
→It can be complete flexure strength test and research for other materials.
→Max. Load capacity:300kN
→Measuring range of load: 2%-100%
→Load resolution: 1/±200000F.S
→Loading rate: 0.02%~2%FS/s
→Displacement speed of piston: 100mm/min
→Piston stroke: 0-500mm
→Span between columns: 600mm
→Vertical test space: 500mm
→Adjusting mode of test space: Adjusted by piston movement
→Loading frame: Upper oil cylinder, high stiffness, high stability, no impact,dual column
→Working voltage: 3 phase, 380VAC±10% 50Hz
→Dimension of loading frame(L*W*H): 900x1900x2400mm,approx.
For details, please check the following link:
http://www.hrjtest.com/content/?1117.html
