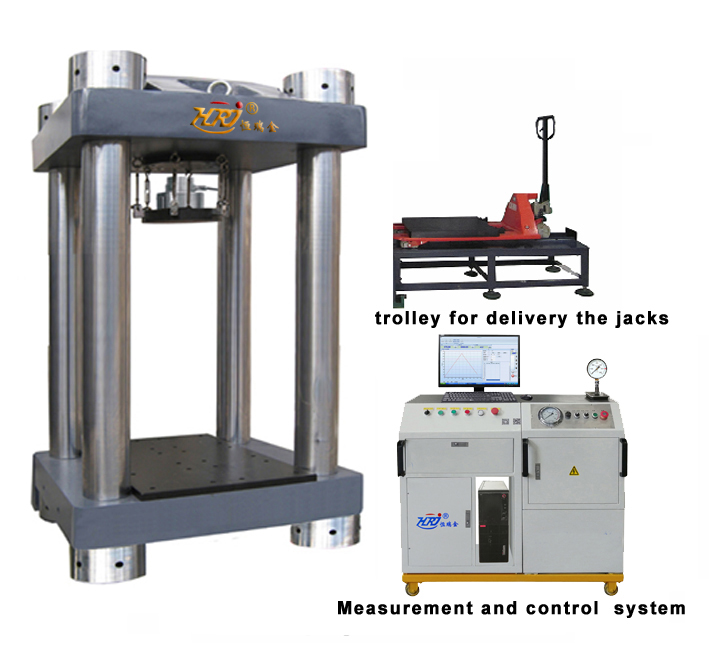

Application & Functions →It is used to test electric separated hydraulic jacks, thin hydraulic jacks, centre hole jacks, large-tonnage jacks, special large-stroke jacks, standard jacks, non-standard special jacks and other jacks of various specifications and types. →Comply with JJG621-2012 Verification Regulation of Hydraulic Jacks →With streamline loading frame with four-column structure, high stiffness, high stability, free of vibration impact. →Movable crosshead, base: made of high strength precise cast steel, processed by machining to ensure its parallelism, stiffness and stability. →Four columns: No. 45 quality carbon steel, first rough processing, conditioning treatment, and then finishing molding. →Load cell bracket, superimposed concave structure, easy to fix a few load cells with different size and outside diameter, effective protection of load cells and personal safety. →With ring type adjustable ring, capable of manual operation by large distance and wrench locking, quick adjustment of installation space of load cell, easy for installation of different specifications and sizes, time-saving, labor-saving, safe and efficient. →Movable carriage: easy for installation, unloading of jack, high strength wear resistant, partial track, stop wedge, push rod. →The movable plate is marked with circular schematic lines, cross schematic lines, scale, easy for center the jack. →Suspension control system: jog, remote control, fine adjustment, convenient, safe. →The base is marked with circular schematic lines, cross schematic lines, easy for center the jack. →With combined specially designed pressure plates, changeable, durable and long lasting. →Ergonomic design, comply with man-machine environment, efficient, healthy, comfortable and safe. →With running warning function. Specification

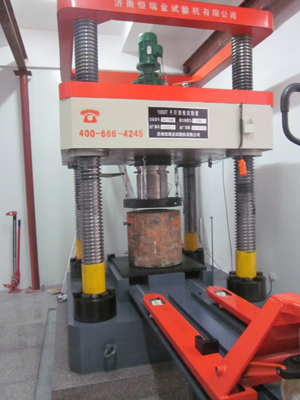

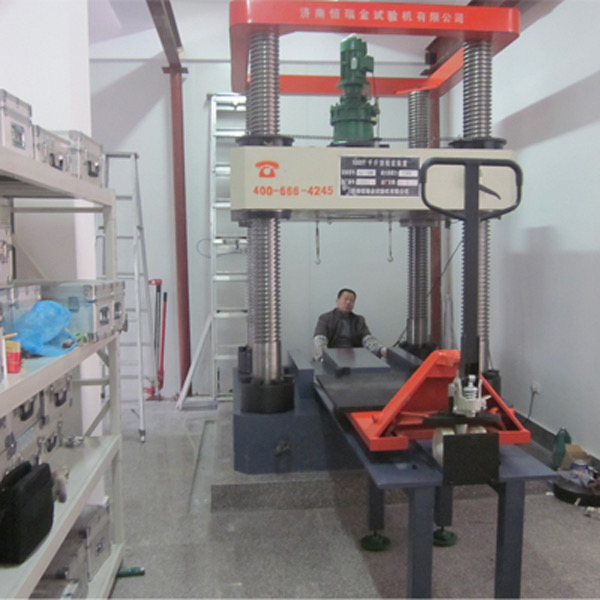

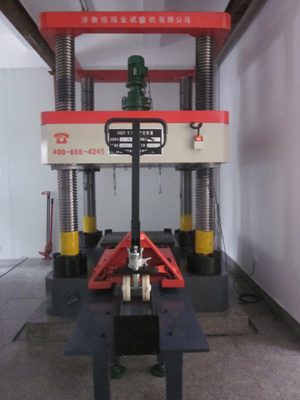

500T/1000T/1200T/1500T/1800T/2000T Jack Reaction Frame Verification Testing Machine 1 Max. load capacity 5MN/500T,10MN/1000T,12MN/1200T, 15MN/1500T,18MN/1800T, 20MN/2000T 2 Finite-element analysis of loading frame deformation<0.3mm 3 Test space 300mm-1600mm 4 Column span(L*W) 600x500mm,1020x820mm, customized 5 Position mark Φ300mm/Φ400mm/Φ500mm/Φ600mm/Φ800mm 6 Space adjustment adjusted by motor drive the crosshead to go up and down 7 Moving speed of crosshead ≥110mm/min 7 Combined bearing plate HRC55-60 8 Plate parallelism 0.3∥1000 9 Schematic line Φ300mm, Φ400mm, Φ500mm, Φ600mm, customized 10 Stabilization plate of load cell Φ320x40mm, Φ600x80mm 11 Working voltage 380V±10%, 50Hz 12 Machine power 1.5kW, 2.2kW, 3.0kW, 4.5kW

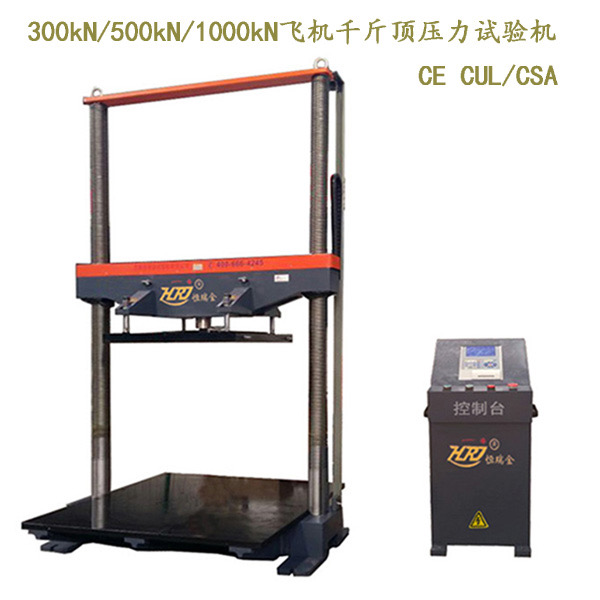

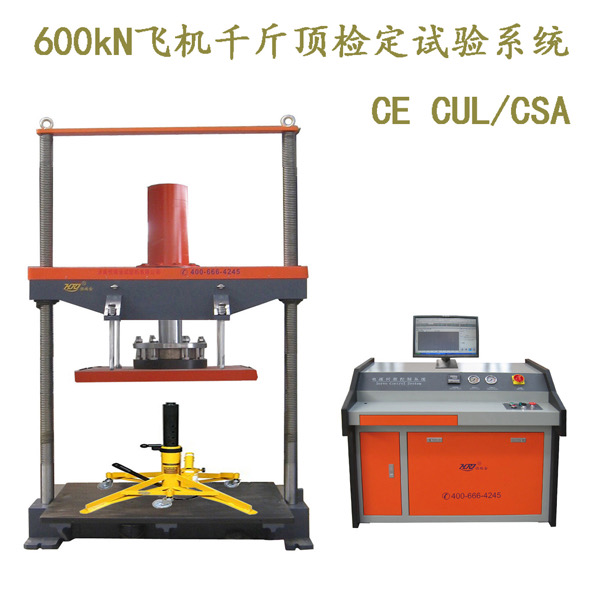

Expansion→300kN500kN600kN1000kN Aircraft Jack Verification Compression Testing Machine
→1000T1200T1500T1800T2000T Quick Model Jack Verification Testing Machine

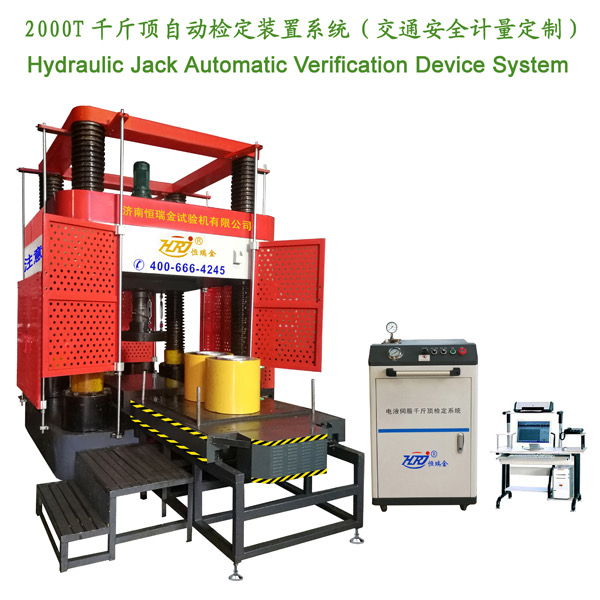

→5MN10MN12MN18MN20MN Jack Verification System
→500T1000T1200T1500T1800T 2000T Multi-function Jack Testing System

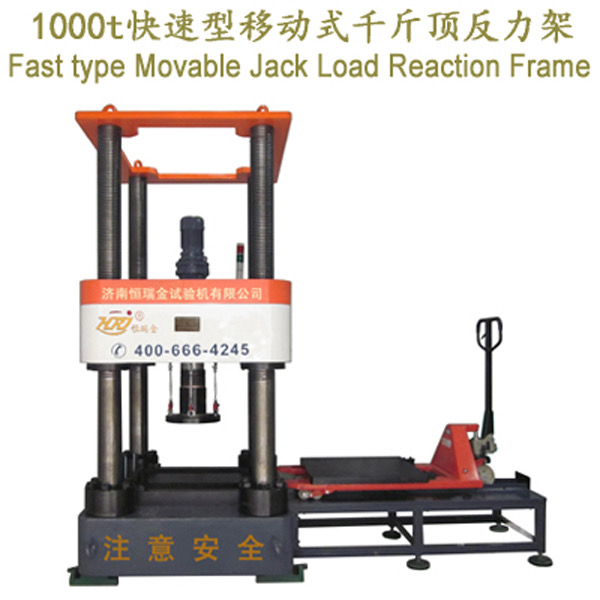

→1000T1200T1500T1800T2000T Quick Movable Jack Reaction Frame
→3000kN Movable Jack Compression Testing Machine
→500T Double-screw Large Space Jack Reaction Frame
