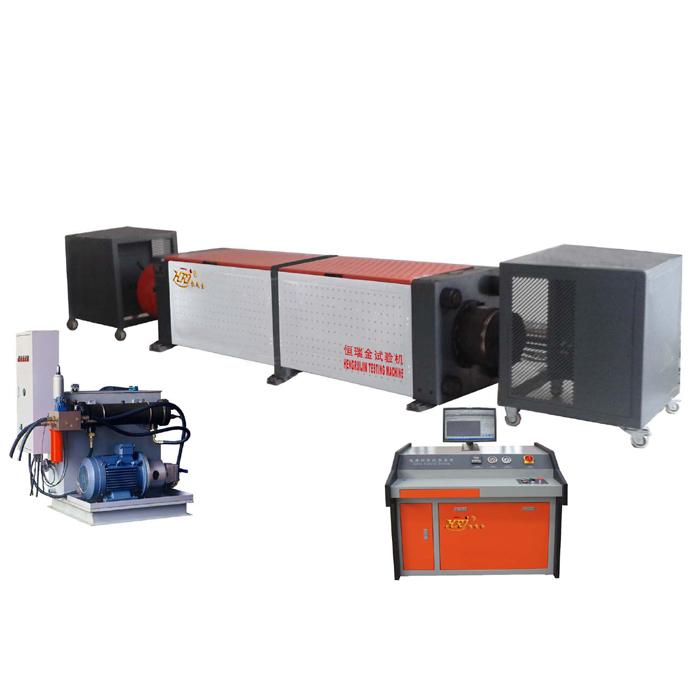

Function & Features
1) Adopting load sensor to measure load and controlled and displayed by computer, with high control precision.
2) Used for static loading anchoring and low cycle loading tests for steel strand anchorage. Test data can be automatic acquired, saved and process by computer.
3) With maintenance functions of max. load peak and displacement peak.
4) With over load protection function.
5) It can test single-strand or multi-strand sample: ø12.7, ø15.2, ø17.8, ø 21.8mm and also anchorage.
Technical Specification
1) max. load capacity: 10000kN
2) measuring range of load: 4%-100%
3) control rate of test force: 1kN/s-50kN/s, 1MP/s-100MP/s
4) measuring range of displacement: 0-200mm
5) displacment resolution: 0.01mm
6) hold time of displacment and load: ≥24h
7) piston stroke: 0-300mm
8) tensile space: ≥3400mm
9) motor power: 380VAC/50Hz/10.5kW
10) dimension of loading frame (L*W*H): 5200*750*900mm
11) dimension of controller (L*W*H): 1180*800*1310mm
