Application & features

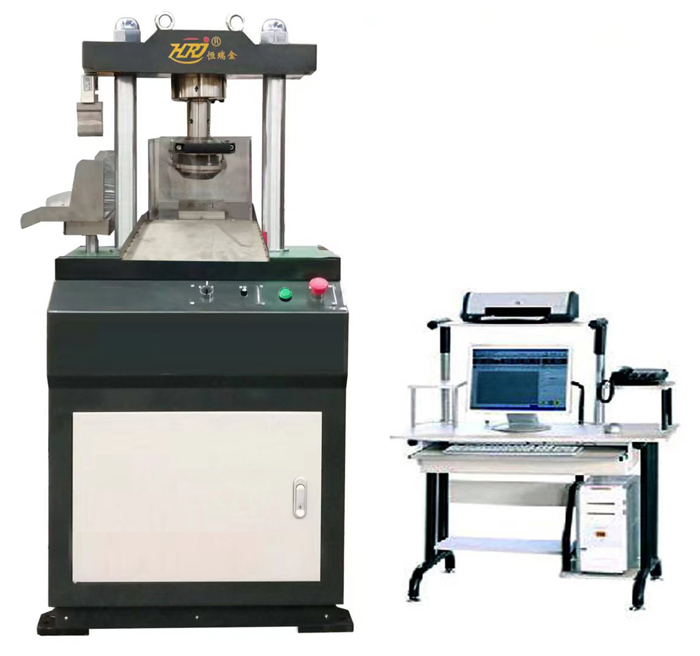

→Used in compression and flexure test for graphite electrode for compression and flexure strength.
→If equipped with proper fixture, it also can be used in compression and flexure tests for common cement, special cement, characteristic cement, concrete mortar,tiles, rocks and so on.
→High precision load sensor, wide linearity.
→High speed, low vibration, low noise AC motor drive system.
→Real-time control and display of test force and curves.
→Automatic return to the original position after test, intelligent, high efficient and quick.
→Multi-protection function: overload, overcurrent, overvoltage.
→Using 220V power supply, avoid complex procedure to connect 380V power lines.
→Using fully mechanical structure, completely closed from servo motor to servo speed reducer unnecessary to change lubricant during its use, avoiding oil leak and proportional valve clogging which is good to keep lab clean.
→Comply with standards: GB/T13465.2,GB/T13465.3,GB/T3074, ASTM C651.
→ max. Compression load: 300kN
→max. flexure load: 10kN
→Measuring range of load: 1 - 100% full scale
→Load resolution: 1/±300000FS
→Displacement speed: 0.05-40mm/min
→Screws stroke: 0-100mm
→Diameter of upper and lower pressure platen: 150mm
→Distance between upper and lower pressure platens: 180mm
→Span between columns: 300mm
→Working power: 220VAC±10%, 50Hz
→Motor power: 1000W
→Dimension (L*W*H): 630x600x1350mm
