→Used in flexible freight container vertical dropping test: lift the flexible freight container full of contents up for certain height and then let it drop freely to rigid plane and then check whether there is contents overflows and whether there is damage between container body and connection parts,to evaluate the impact strength under vertical impact and the protection function to contents.
→Height set: to select and set drop height,drop times, electromagnetic control drop for instantaneous free drop.

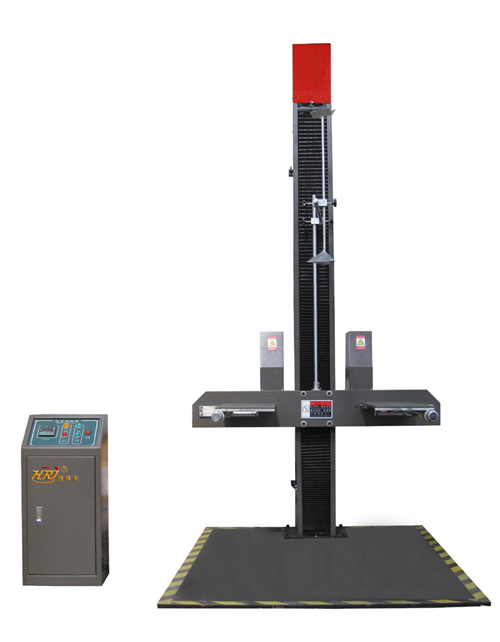

→Double panel drop testing machine: drop height: 300-1500mm, special for damage determination after drop and for evaluation impact strength during transportation,comply with GB/T4857.5-92, ISO2248-1972E.
Used to test square,round flexible container,volume (0.5-2.3)m3, load≤150kg flexible container, other packages.
→BS EN ISO21898-2006(FIBCs) Packaging - Flexible intermediate bulk containers (FIBCs) for non-dangerous goods
→DIN EN ISO 21898-2005 Packaging-Flexible intermediate bulk containers (FIBCs) for non-dangerous goods
→ISO21898-2005 Packaging - Flexible intermediate bulk containers (FIBCs) for non-dangerous goods
→BS EN277-1996 Sacks for the transport of food aid - Sacks made of woven polypropylene fabric
→ISO 7965-2:1993 Sacks - Drop test - Part 2: Sacks made from thermoplastic flexible film
→BSEN 22248 Complete filled transport packages. Method for determination of resistance to vertical impact by dropping
