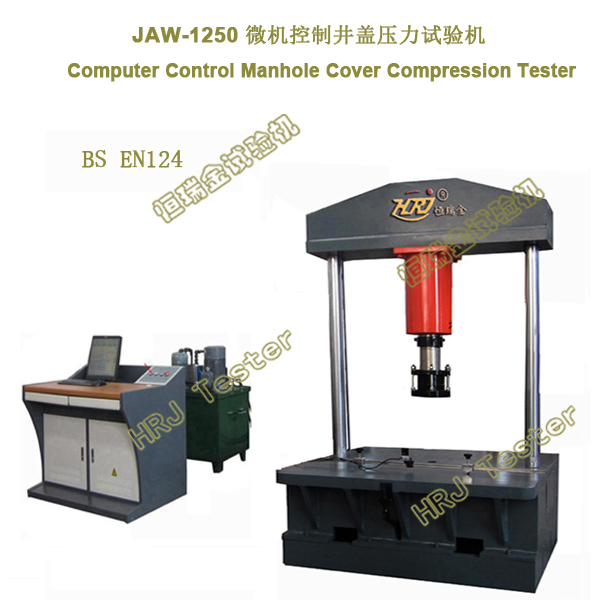

JAW-1250kN Manhole Cover Compression Testing Machine (BSEN124/EU )

1. Introduction

→used in static compression test for various manhole cover,trench cover,well grates/shutter grates.

→used in bearing capacity test of frame and residual deformation test for various manhole cover,trench cover,well grates/shutter grates.

→used for manhole cover loading test, displacement deformation test, strain test, compression cyclic test,etc.

→used for crack load test,break load test,residual deformation test,crack width test,etc.

Test Standards

→BS EN 124：2015 Gully tops and manhole tops for vehicular and pedestrian areas

→Part1: Definitions, classification , general principles of design, performance requirements and test methods

→Part2: Gully tops and manhole tops made of cast iron

→Part3: Gully tops and manhole tops made of steel or aluminium alloys

→Part4: Gully tops and manhole tops made of steel reinforced concrete

→Part5: Gully tops and manhole tops made of composite materials

→Part6: Gully tops and manhole tops made of polypropylene (PP), polyethylene (PE) or unplasticized poly (vinyl chloride) (PVC-U)

2. Technical Specifications
