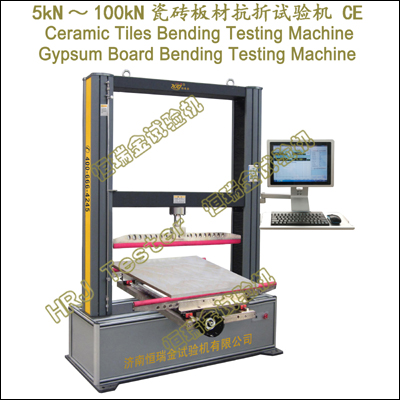

→It is computer-controlled precision testing machine, used in bending test for the determination of the modulus of rupture, breaking load and breaking strength of all ceramic tiles.
→It is widely used in many fields such as industry factories, mineral enterprise and high schools.
→Comply with test standards ISO10545-4 (GB/T3810.4) Ceramic tiles-Part 4: Determination of modulus of rupture and breaking strength
→Max. Load: 20kN
→Test sample: 1000×1000mm
→Span between columns: 1100mm
→Travel of cross beam (without grips): 1000mm
→Test speed: 0.005-500mm/min
For details, please check the following links:
http://www.hrjtest.com/content/?495.html
