Introduction

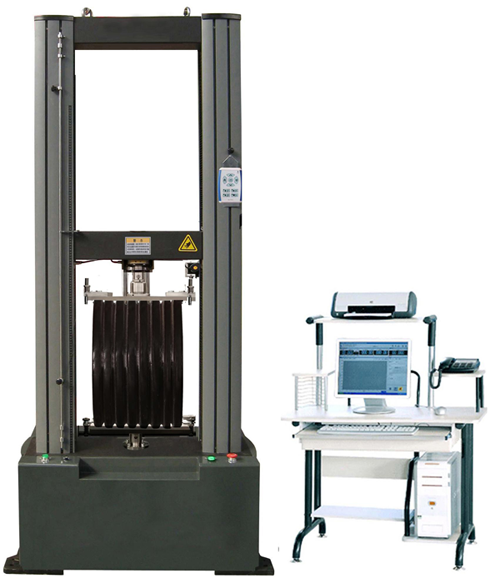

→Applicable to pipes with diameter not more than 1200mm, mainly used to measure ring stiffness and ring flexibility tests.
→With precise automatic control and data acquisition system to realize full digitalization adjustment to data acquisition and control process.
→Comply with ISO9969, EN13968.
→Max. load capacity: 30kN
→Measuring range of load: 1%-100%
→Load resolution: 1/±300000F.S
→Displacement speed: 0.005-500mm/min
→Span between columns: 510mm
→Test space: 1200mm
