Application

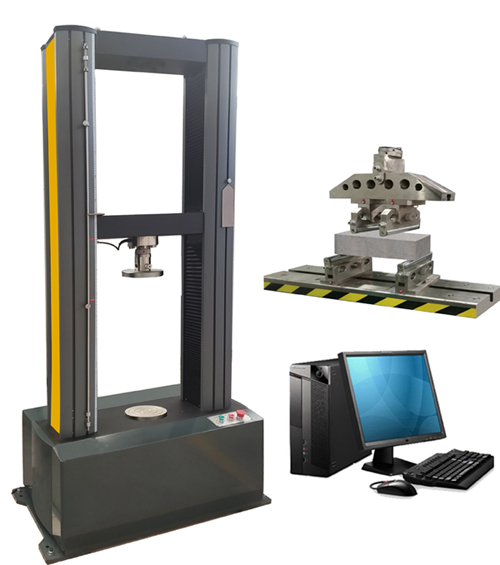

→It used in 4-point bend testing machine for glass-fibre reinforced cement panel.
→It specifies a test method for identifying the stress and deformation performance, at the limit of proportionality and on failure, of a GRC composition subjected to bending.
→Comply with EN1170-5 Precast concrete products-Test method for glass-fibre reinforced cement-Part 5: Measuring bending strength-`Complete bending test` method
→Load capacity: 5kN
→Load resolution: 1/300000F.S
→Measurement type: Displacement controlled
→Displacement resolution: 0.001mm
→Displacement speed control range: 0.005-500mm/min
→Effective test span (mm): 400mm
→Crosshead travel: 1000mm
→Dimension of loading frame (L×W×H): 860×410×1700mm
