Application

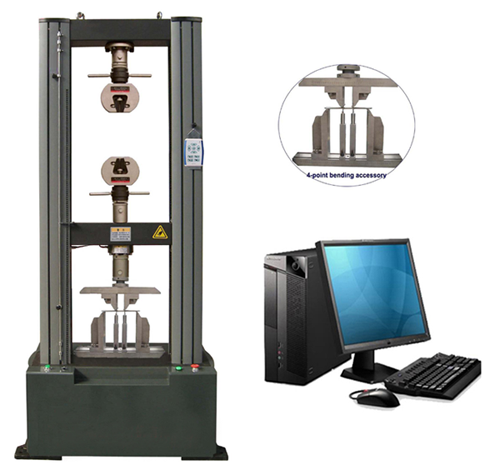

→Used in tensile test, compression test, bending test for bone joint implant metal bone plate at room temperature environment and mechanical properties test and research for orthopedic materials.
→Used for static four-point bend testing of intrinsic, structural properties of intramedullary fixation devices (IMFDS) for surgical fixation of the skeletal system.
→Used for axial pullout strength test of medical bone screws.
→Medical devices, bone-binding implants, surgical implant, straight bone plate, Angle bone plate, grip bone plate, tubular bone plate, L-shaped bone plate, hook bone plate, double curved bone plate, Y bone plate, golf club bone plate, T-shaped bone plate, reconstructed bone plate, curved bone plate; Corrugated steel plate; Point contact plate; Contact dynamic compression plate;
→Comply with standards:
→ASTM F382-2014 Standard Specification and Test Method for Metallic Bone Plates
→ASTM F543 Standard specification and test methods for metallic medical bone screws
→ASTM F1264 Implants for orthosynthesis-Metallic lockable intramedullary nail
→ISO9585 Implants for surgery-Determination of bending strength and stiffness of bone plate
→ASTM E8M-04.Standard Test Methods for Tension Testing of Metallic Materials
